Chiller Tube Cleaning for Commercial HVAC Condensers: Procedure, Benefits, and Best Practices

Commercial HVAC chillers are among the biggest energy consumers in many buildings. Keeping them efficient is critical for controlling costs and maintaining comfort. One key aspect of commercial HVAC maintenance is ensuring the condenser tubes in water-cooled chillers stay clean. Over time, these tubes accumulate mineral scale, sediment, and biofilm that act like insulation, impeding heat transfer and condenser efficiency. The impact of neglecting this is significant: even a thin 0.6 mm layer of fouling can reduce chiller efficiency by ~20%, and a heavily fouled condenser can drive energy use up by as much as 30%. In other words, a chiller with dirty tubes must work harder (using more electricity) to provide the same cooling, leading to higher utility bills and unnecessary strain on the equipment. Regularly cleaning (or “punching”) those condenser tubes is therefore essential to keep chillers running at peak performance and to avoid costly downtime.

What Is “Tube Punching” in HVAC?

“Tube punching” is an industry term for mechanically cleaning the inside of chiller tubes to remove buildup. In simple terms, technicians push brushes or rods through each tube to scrub out scale and debris. This restores the tubes’ heat transfer capability so the condenser can reject heat effectively again. A seasoned HVAC technician would describe punching a chiller as inserting a brush or rod through the evaporator and condenser tubes to dislodge any fouling. In practice, tube punching is a routine preventive maintenance step performed about once a year (often during off-season downtime) to prevent heavy fouling from ever forming. In the sections below, we’ll walk through the step-by-step procedure professionals follow for chiller tube cleaning, discuss the tools and safety precautions involved, and highlight the benefits of staying on top of this maintenance task.

Step-by-Step Chiller Tube Cleaning Procedure

Regular condenser tube cleaning involves a series of careful steps performed by trained technicians. Below is a step-by-step guide on how professionals punch and clean chiller tubes:

1. Shutdown and Preparation: Before any cleaning begins, the chiller is turned off and properly isolated. Technicians follow lockout/tagout procedures to cut power and ensure the system can’t accidentally start during service. The condenser water circuit is usually drained or valved off to allow access to the tubes. Safety is paramount – crew members wear appropriate personal protective equipment (gloves, safety glasses, etc.) to guard against contact with dirty water, chemicals, or debris during the cleaning process.

2. Open the Condenser and Access Tubes: The end covers (water box covers, often called end bells) on the condenser are unbolted and removed, exposing the tube sheet – a round plate with hundreds of tube openings. Some residual water will spill when the covers come off, so technicians place catch pans or rags to protect the area. Now the internal condenser tubes are visible from each end, and an initial inspection can assess the fouling inside. Shining a flashlight into a few tubes or using a small borescope camera reveals if tubes are heavily scaled, sludged up, or even fully clogged. This inspection helps determine the best cleaning approach for the deposits present.

3. Identify the Fouling and Choose a Cleaning Method: Different types of deposits may require different cleaning strategies. Soft fouling like algae, slime, or mud (often drawn in from the cooling tower) can usually be removed with nylon brushes or other gentle methods. Hard mineral scale (for example, calcium carbonate from hard water) or corrosion buildup is tougher. These might need stiffer wire brushes or even chemical treatment. It’s important to choose the right cleaning attachments because there’s “a big difference between removing softer fouling like algae and mud compared to tougher scaling and mineral deposits,” as one source notes. In some cases, technicians will apply a pre-soak to make cleaning easier, for instance, wetting the tube interiors with water or a mild descaling chemical to soften up dry, hard scale before brushing. If very heavy mineral scale is present, a chemical descaler (acid cleaning solution) might be circulated through the tubes to dissolve deposits. However, chemical cleaning must be done carefully, ensuring any chemical is compatible with the tube material and that the waste is disposed of properly. (Often, a specialized biodegradable descaling agent can be used to loosen thick scale, which is then flushed out prior to mechanical brushing.)

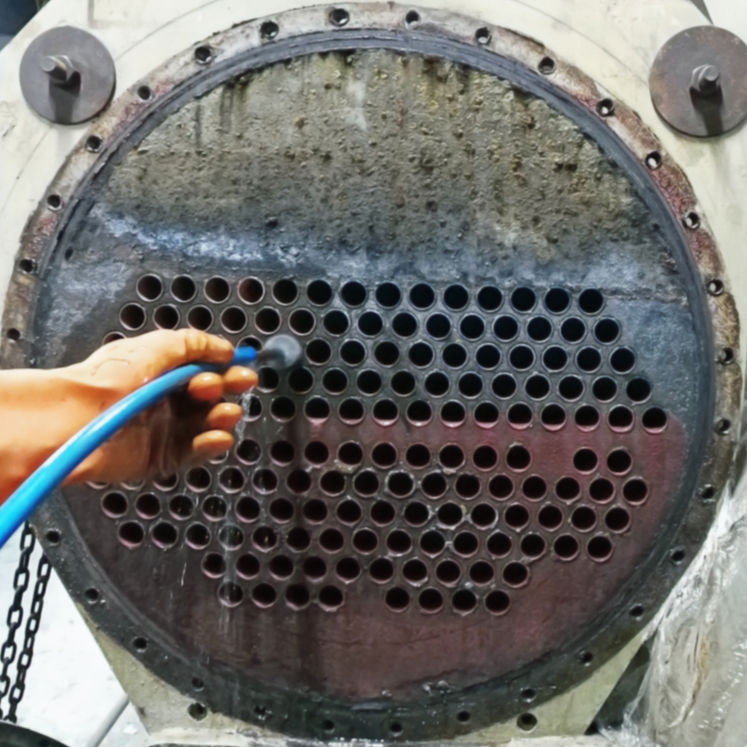

4. Mechanical Tube Brushing (“Tube Punching”): With the deposits identified and tools

   selected, the technician now cleans each tube mechanically. Traditionally this is done by manually pushing a long flexible rod with an attached brush through each tube. Modern maintenance teams often use a rotary tube cleaning machine with a water flush system for efficiency. In a rotary tube cleaner, an electric or air-driven motor spins a flexible shaft inside a water-fed hose. At the tip of the shaft is a brush or cleaning bit

   sized to the tube’s diameter. As the technician feeds the rotating brush through the tube, water is simultaneously pumped through the shaft to flush out the loosened debris. This combined action of scrubbing and flushing is highly effective, the spinning brush breaks apart slime and scale, while the water stream washes the particles out of the tube. If the chiller uses newer internally enhanced (rifled) tubes with grooves on the inside, special brushes are used that can reach into the grooves (a regular smooth brush might glide over fouling in the ridges). Technicians work one tube at a time in a systematic order until every tube in the condenser bundle has been cleaned. They make sure the brush travels the full length of each tube. If a tube is completely clogged, the tech may run the brush multiple times or use a drill-like boring bit to pierce through the blockage. Throughout this process, dirty water and debris are continuously expelled from the tube being cleaned and directed into a drain or collection container for proper disposal.

5. Repeated Flushing and Inspection: After brushing all tubes, the technicians flush the tubes again with clean water to wash out any remaining loosened particles. It’s common to run a hose through each tube or use the cleaning machine’s water flush feature to ensure nothing is left inside. The crew might perform spot-checks on a few tubes by looking through them end-to-end (you should see daylight through a clean, open tube) or by using a videoscope camera to inspect internal surfaces. If any tubes still show deposits, they will repeat the brushing on those tubes or switch to a different cleaning attachment for especially stubborn scale. The goal is to have shiny bare-metal tube walls with no significant residue remaining. This step is critical because even a thin layer of scale can drastically reduce heat transfer. For example, a deposit layer of just 1/40th of an inch (0.6 mm) can cut chiller efficiency by around 20% – so thorough cleaning ensures the chiller’s condensing temperature and pressure stay in the normal range, meaning the compressor doesn’t have to work as hard for the same cooling output.

6. Reassembly: Once all tubes are clean and have passed inspection, the technicians put the chiller back together. The water box end covers (end bells) are reinstalled and bolted back on evenly (often with new gaskets or O-rings to ensure a good seal). It’s important that all bolts are tightened to the manufacturer’s torque specifications to prevent leaks. The team also makes sure no tools, rods, or hoses are left inside the machine. Any wastewater and debris collected from the cleaning process is disposed of in accordance with environmental regulations and site safety policies.

7. Return to Service and Testing: Finally, the condenser is prepared to go back online. If the condenser was drained, it’s refilled, and all valves are returned to their normal operating positions. The chiller pumps are started, and the system is carefully checked for leaks around the tube sheet covers. The technician monitors the chiller’s operating pressures and temperatures to confirm that the cleaning had the desired effect – typically, after a thorough tube cleaning, the condenser pressure drops back to a normal lower range and the chiller can achieve full tonnage (cooling capacity) without triggering high-head-pressure alarms. In short, the unit should now operate more efficiently than before. In some maintenance plans, an additional Eddy current test is performed every couple of years (once the tubes are clean) to detect any thinning or cracks in the tubes that could lead to leaks. This ensures the tubes are not only clean but also in good physical condition. Going forward, the facility will also continue its routine water treatment measures (like adding scale inhibitors or biocides to the cooling tower water) to help minimize new fouling, so the tubes stay cleaner for longer after this service.




Quick Tip: Schedule chiller tube cleaning during the off-season or cooler months when the chiller isn’t needed at full capacity. For example, many facilities perform this maintenance in late fall or winter when cooling demand is low. Cleaning during off-peak times means you won’t have to take your cooling system offline on a hot summer day, and you’ll be ready for maximum efficiency when warm weather returns.

Benefits of Regular Chiller Tube Maintenance

Keeping condenser tubes clean through regular punching/cleaning yields numerous benefits for building owners and facility managers. Some of the key advantages include:

• Improved Energy Efficiency: Clean chiller tubes maximize heat transfer between the refrigerant and the cooling water, allowing the chiller to reject heat with much less effort. Even a thin film of scale or bio-growth acts as an insulator, so removing it lets the chiller operate at its intended efficiency. In fact, the U.S. Department of Energy notes that dirty condenser tubes can drive energy consumption up by as much as 30%. Conversely, cleaning those tubes allows the HVAC system to achieve the same cooling with significantly less electricity. This often yields noticeable energy savings, building owners will see lower kWh usage on their utility bills, especially during the peak cooling season.

• Lower Operating Costs: When a chiller runs more efficiently, it costs less to operate day to day. The compressor doesn’t have to run as long or at maximum capacity to meet the building’s cooling demand when its condenser is clean. This not only saves on energy bills but also reduces strain on the equipment. Additionally, a clean system is less likely to experience performance issues that require emergency service. By avoiding the scenario of an overworked, fouled chiller struggling to cool, owners save money on unplanned repairs and on demand charges (the extra fees utilities charge when equipment draws exceptionally high power). Industry experts often emphasize that clean heat-transfer surfaces are one of the single biggest determinants of chiller efficiency – put simply, “Keep those tubes clean! It will save you money.”

• Extended Equipment Life: Regular tube cleaning removes corrosive deposits and prevents conditions that can lead to premature wear or failure. Fouling causes higher operating temperatures and pressures inside the chiller; over time, that added stress can shorten the life of compressors, tubes, and other components. By maintaining clean tubes, the chiller can operate within its optimal design conditions, which helps all parts last longer. One maintenance publication notes that consistent tube cleaning not only optimizes efficiency but also extends the chiller’s service life. In essence, proactive maintenance is an investment in the longevity of your equipment. A chiller that doesn’t have to constantly battle against clogged tubes will experience less fatigue and will be less likely to fail early. This means fewer expensive capital replacements of major components (or the entire chiller) down the road.

• Reliability and Capacity: A clean chiller is able to provide full cooling capacity on the hottest days, whereas a fouled chiller might struggle to maintain the set temperature, leading to uncomfortable conditions in the building. Clean tubes also reduce the risk of unexpected outages – for instance, a severely fouled condenser can cause high-pressure shut-offs that take the chiller offline at the worst possible times. In contrast, if you keep the tubes clean, the chiller is far more reliable when it’s needed most. Furthermore, maintaining efficiency through tube cleaning contributes to your facility’s sustainability goals by conserving energy and reducing the building’s carbon footprint. Overall, regular condenser tube maintenance is a win-win for performance and cost: it improves HVAC cooling output and reliability while also lowering energy expenses.




(Did You Know? According to HVAC industry studies, the cleanliness of heat exchanger surfaces is often the number-one factor in chiller efficiency. In other words, something as simple as tube cleaning can have a bigger impact on efficiency than many high-tech upgrades.)

Conclusion

Chiller tube punching (condenser tube cleaning) is a vital preventive maintenance task that should be high on every facility manager’s priority list. Keeping condenser tubes clean keeps your chiller and by extension your entire HVAC system running at peak performance. We’ve seen how fouling deposits like scale, algae, and sediment can drastically hinder heat transfer and drive up energy usage. By implementing a routine cleaning schedule (typically annually, or more frequently if you have very hard water or other harsh conditions), you ensure these deposits never get a chance to accumulate to problematic levels. The cleaning procedure, while requiring specialized tools and expertise, is well worth the effort: your chiller will run more efficiently, use less electricity, and be far less likely to suffer stress-related breakdowns. Equally important, proactive maintenance like this gives you peace of mind that your building’s cooling will perform reliably when it’s needed most. Rather than waiting for a decline in cooling performance or a costly emergency repair, it’s far better to stay ahead with regular inspections and cleaning. Prevention through tube cleaning yields many pounds of cure in terms of energy savings and extended equipment life. For facility managers seeking energy-saving HVAC tips, regular condenser tube cleaning is one of the most impactful steps you can take to cut operating costs.

Key takeaways: maintain a consistent schedule for tube inspections and cleaning, address fouling before it becomes severe, and partner with qualified HVAC professionals who have the right tools and experience to perform the job safely and thoroughly.
